- Low Profile Fascia design.

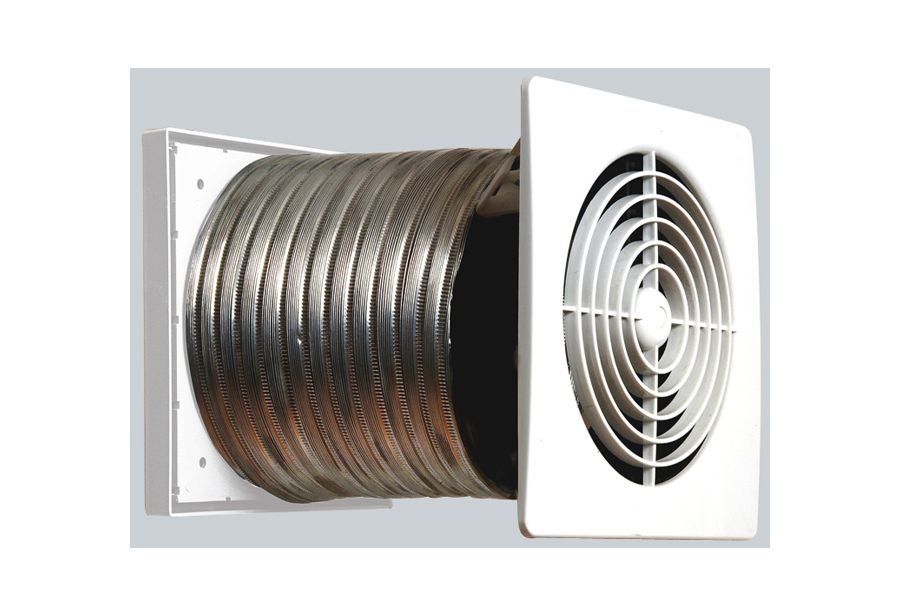

- Thru Wall kit includes a wall mounted fan (87l/s) a length of thru wall duct and an external gravity grille.
- Designed to be ducted straight through an exterior wall.
- The unique Low Profile design enables these fans to be installed unobtrusively into any wall
(requires a minimum wall cavity of 110mm) - These axial Manrose fans have been upgraded with ball bearing motors to prolong the life of the motor
- Supported by a five year warranty
- Safety Extra Low Voltage (SELV) Fan Models available also.
Fan Switching Options:
- Standard Models - fans operate from remote switch (not supplied)
- Timer Models - fans operate from a switch, the fans continue to run for a preset time after switching off - adjustable 1-20 minutes.
Requires three wires: permanent phase, switched phase, neutral - Low Voltage Models - suitable for installation in damp areas, zones 1, 2 and 3.
NOTE: All fan flow rates quoted are free air delivery.
